Victron DCDC Orion XS 12/12-70A

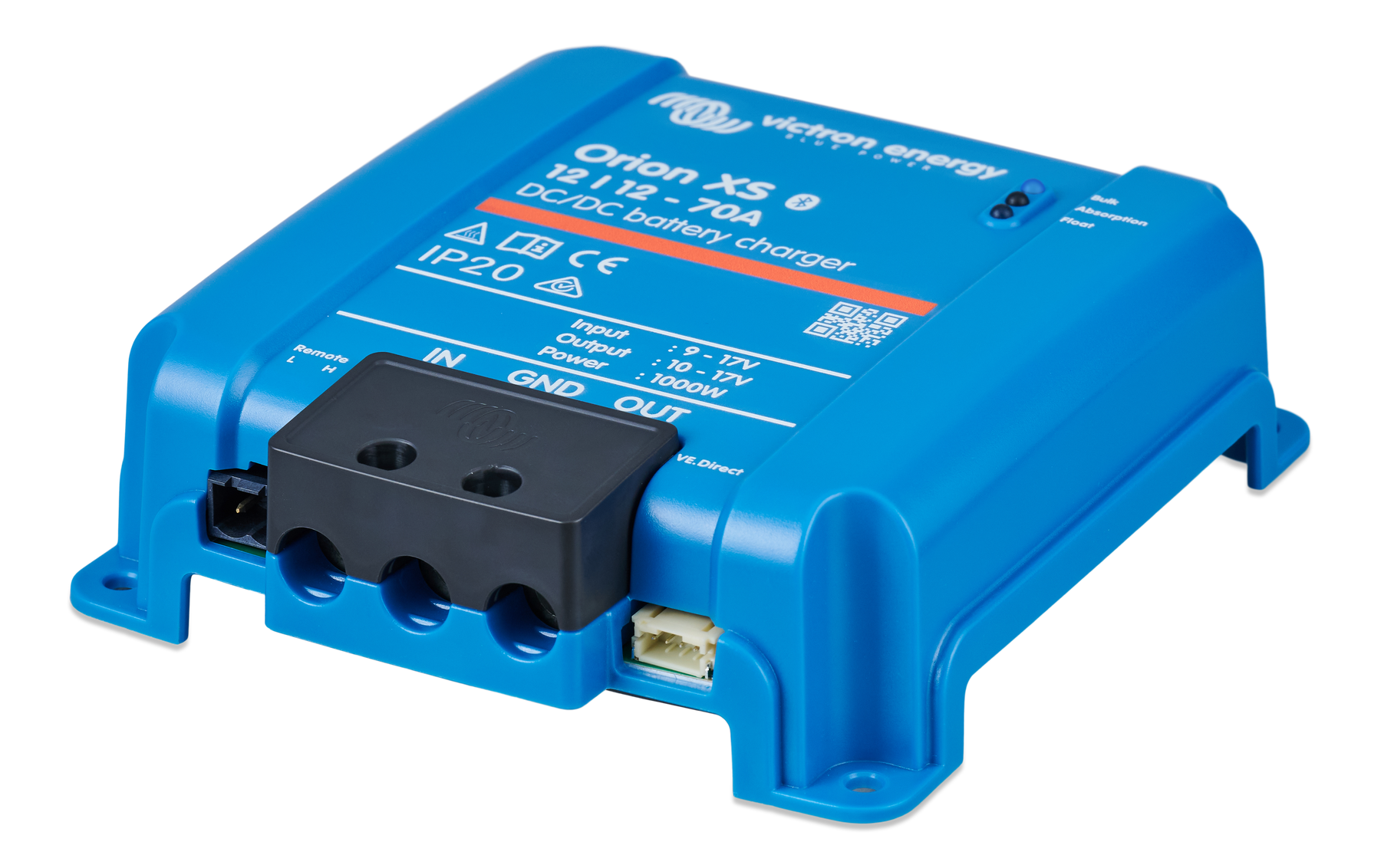

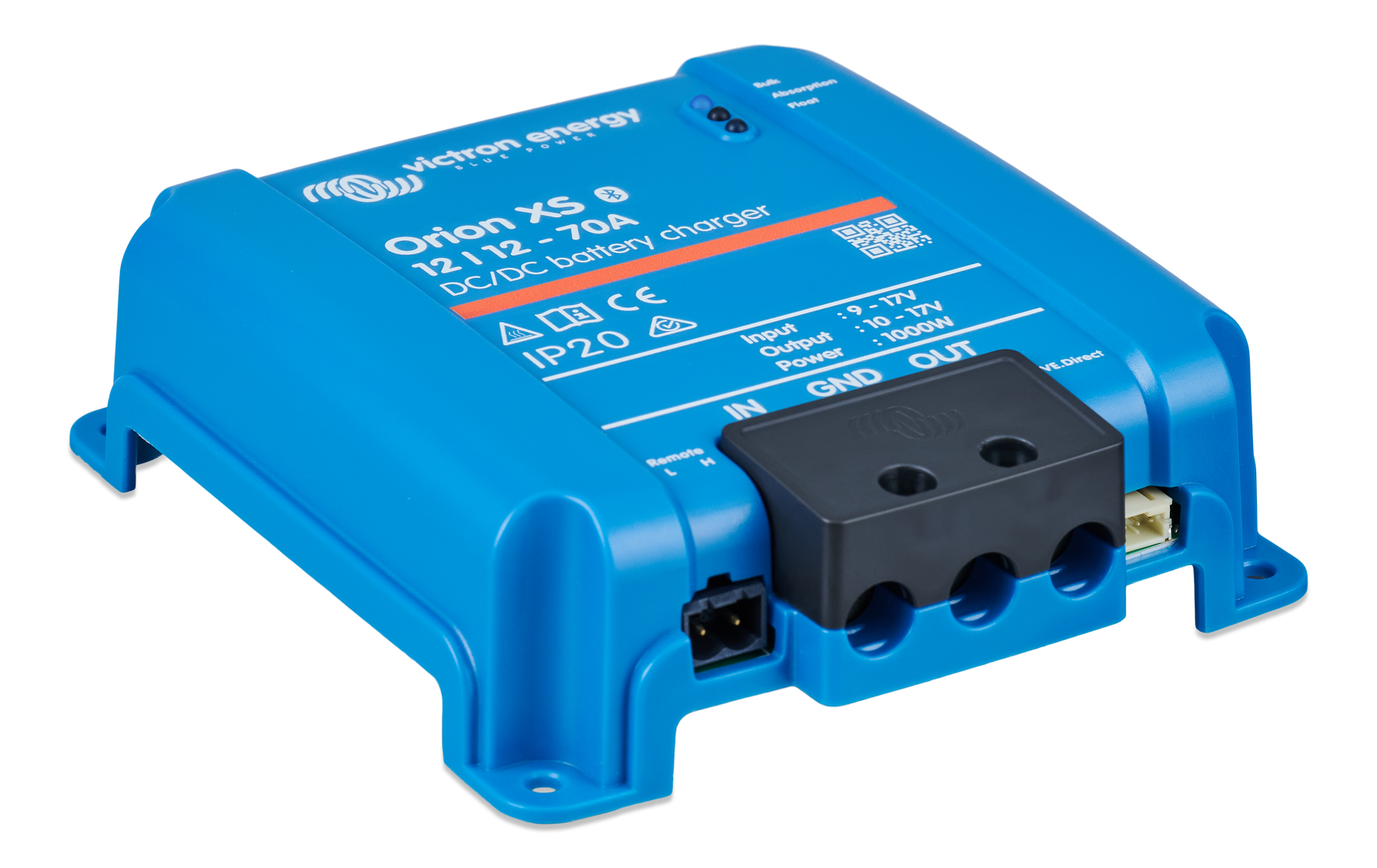

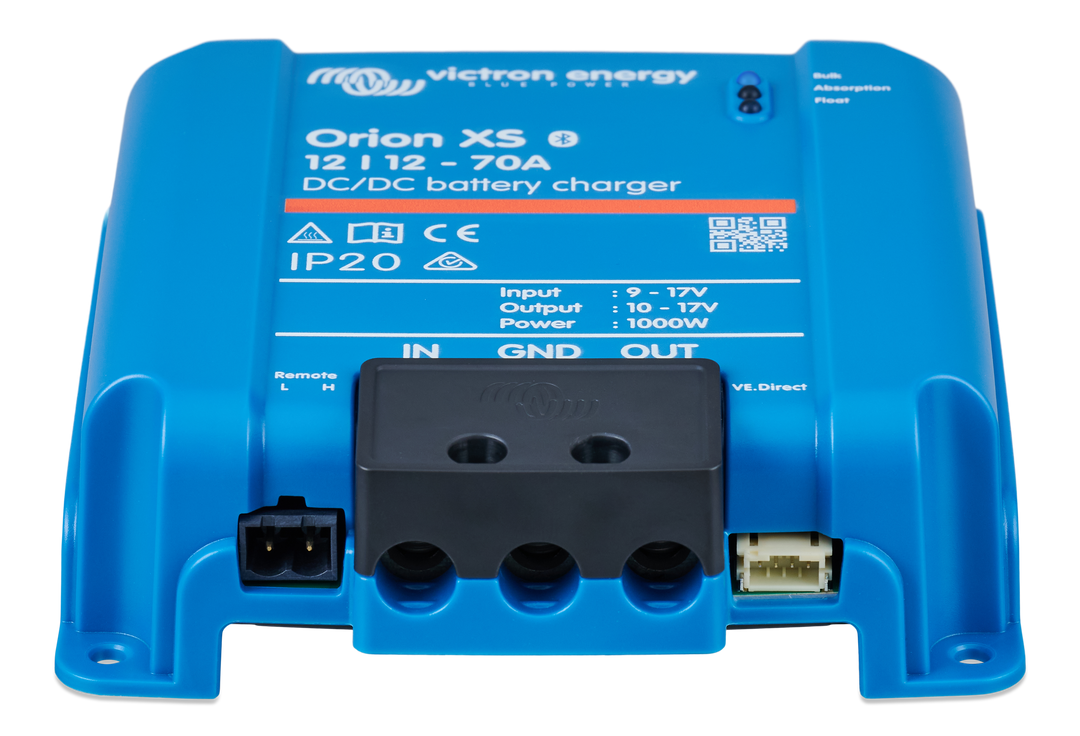

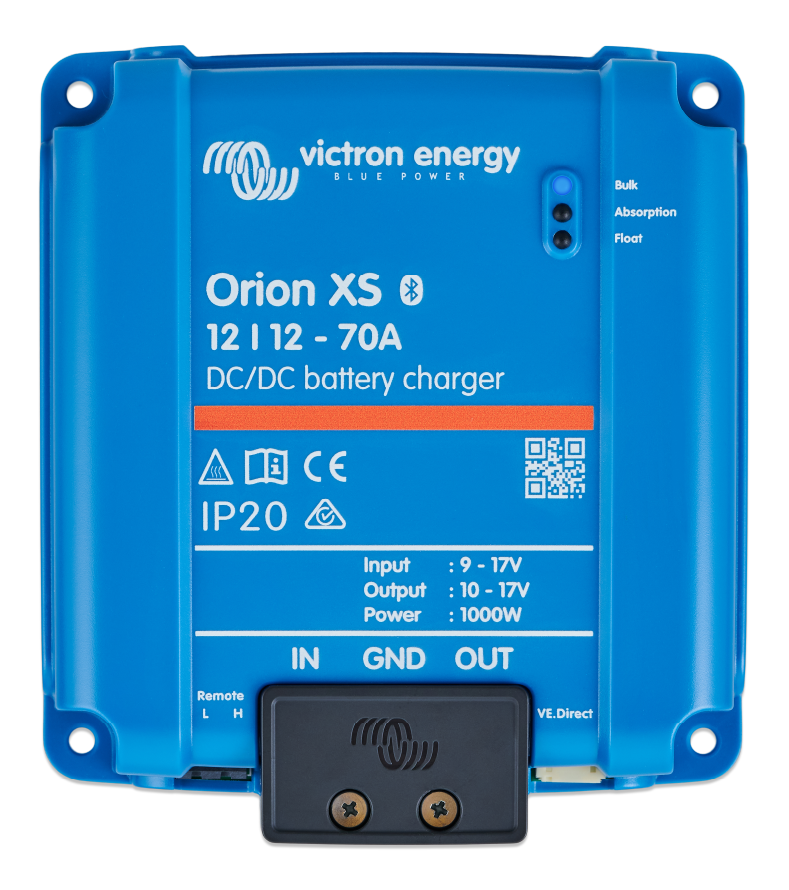

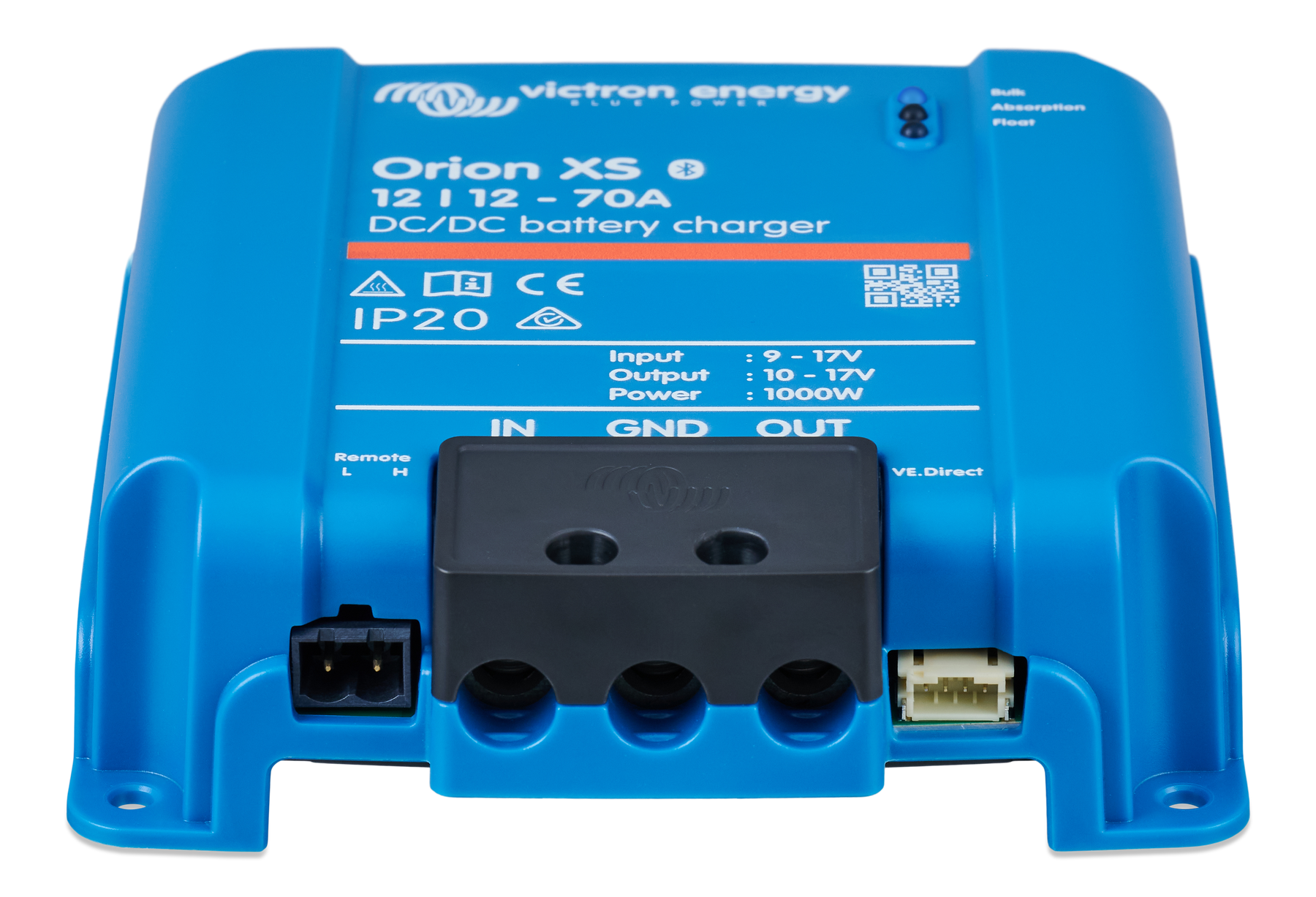

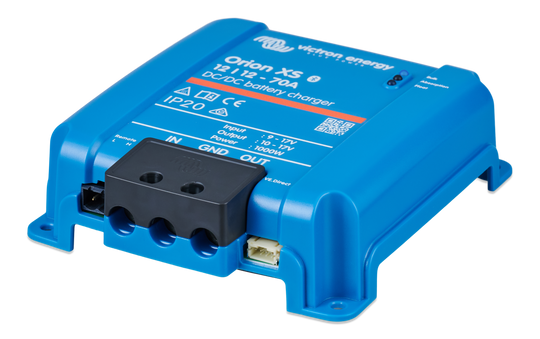

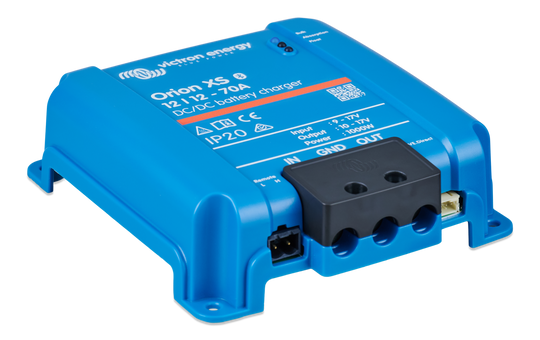

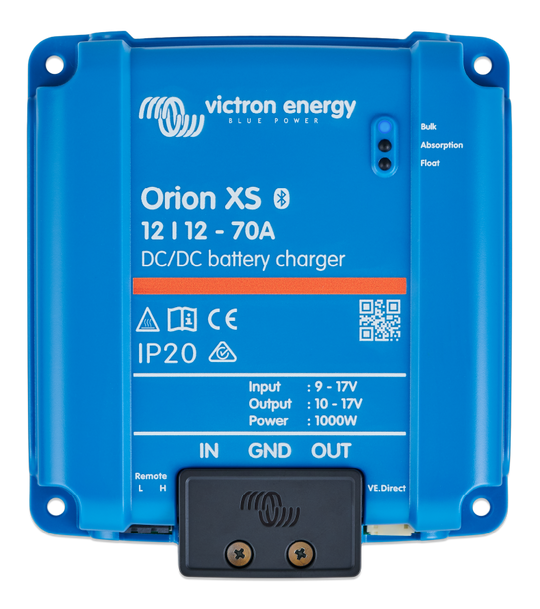

Victron Orion XS 12/12-70A DC-DC Battery Charger

The Victron Orion XS 12/12-70A takes the compact Orion XS platform to a higher output, delivering up to 70A of intelligent DC-DC charging from a 12V vehicle electrical system.

Remarkably, the 70A model retains the same compact physical footprint as the Orion XS 12/12-50A. To achieve the additional output within the same enclosure size, Victron has added active fan cooling to the rear of the unit, allowing it to maintain significantly higher charging performance without requiring a larger charger.

The trade-off for the active cooling design is an IP20 protection rating, compared with the IP65/IP67-style environmental protection associated with some sealed Victron equipment. The Orion XS 70A should therefore be installed in a dry, protected and adequately ventilated location.

Key Features

• Up to 70A Charge Output – High-output alternator charging for larger auxiliary battery systems.
• Same Compact Footprint as the 50A Orion XS – 40% more maximum charging current without requiring additional mounting area.

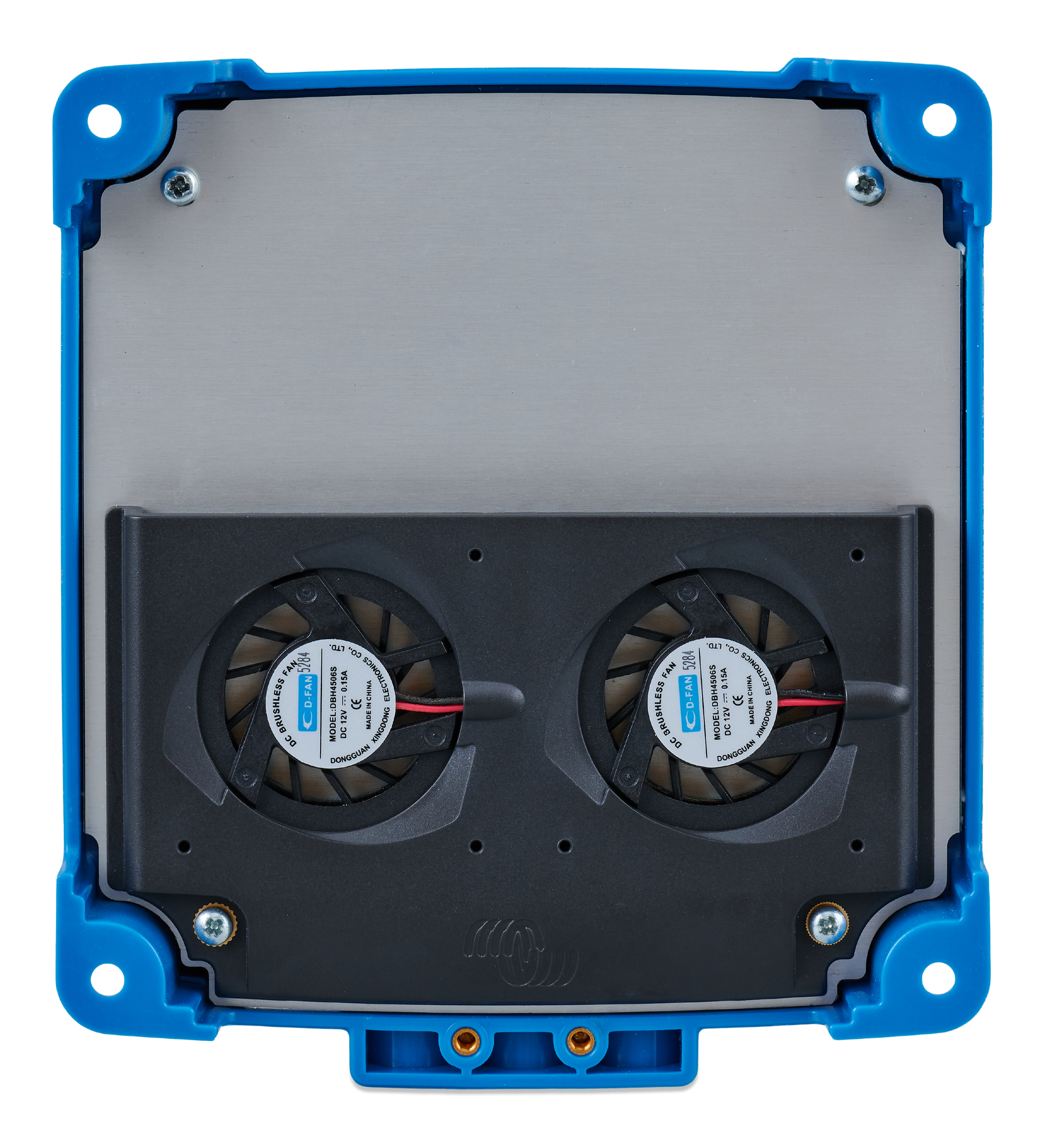

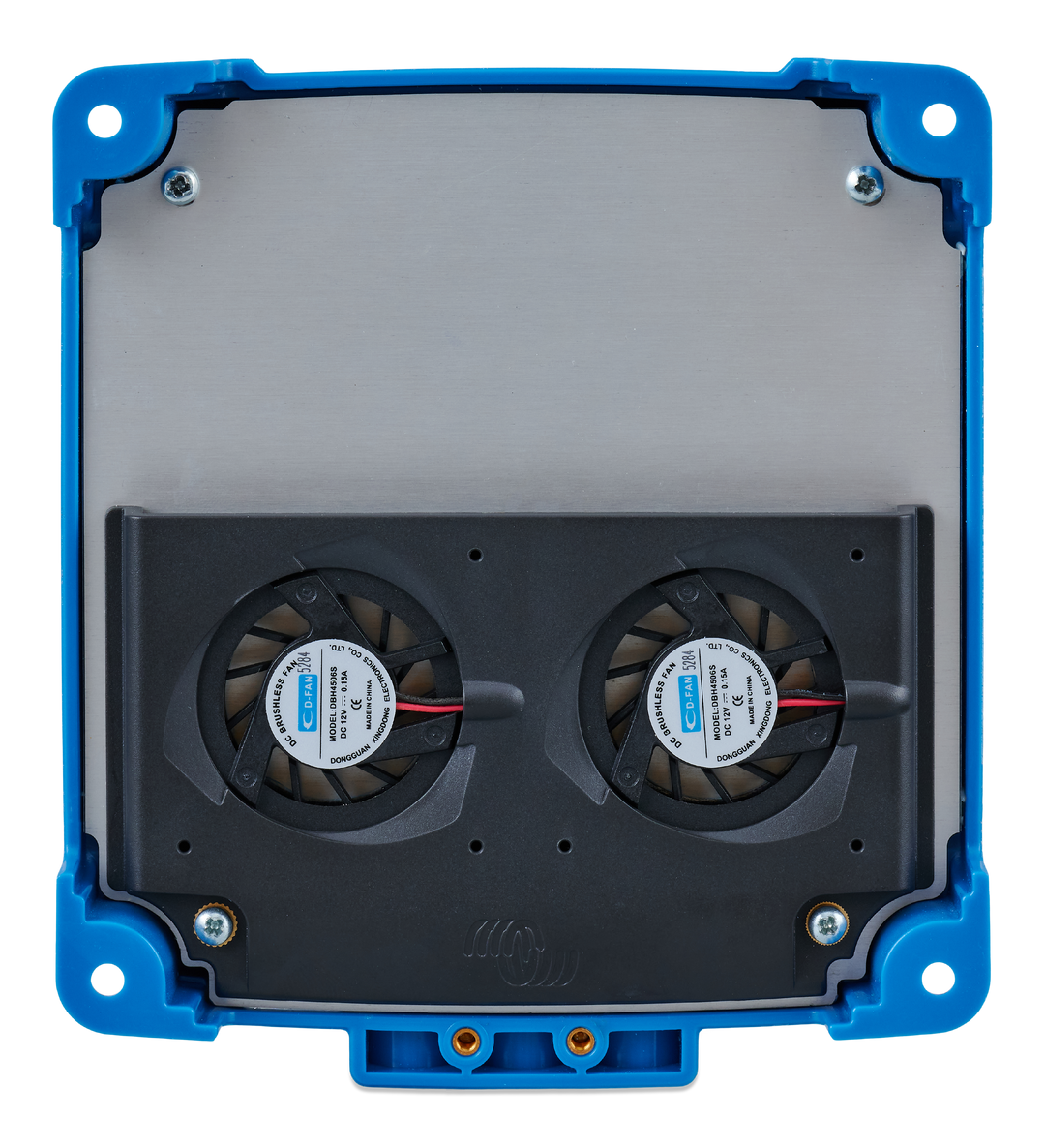

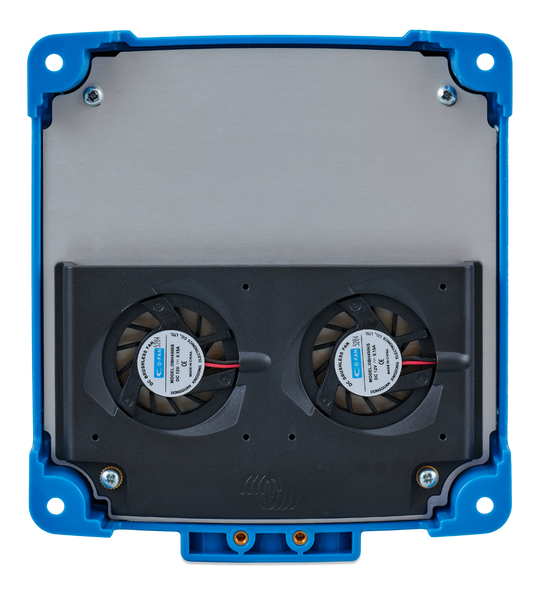

• Active Fan Cooling – Rear-mounted cooling fans allow the compact charger to sustain its higher output.
• Adjustable Charge Current – Input and output current limits can be configured to suit the alternator, vehicle wiring and battery system.
• Smart Alternator Compatible – Suitable for conventional and variable-voltage vehicle alternators.
• Bluetooth Built In – Complete configuration and monitoring through the VictronConnect app.
• Intelligent Charging – Fully configurable charging profiles suitable for LiFePO4, AGM, Gel and lead-acid batteries.
• Engine Running Detection – Intelligent detection allows automatic charging operation when the vehicle is running.
• VE.Direct Connectivity – Integrates with compatible Victron GX systems for centralised monitoring.
• High-Efficiency Design – Engineered to minimise conversion losses while delivering high charging output from a compact package.

Installation Considerations

Unlike the sealed 50A Orion XS, the 12/12-70A is rated IP20 due to its active cooling system. It should be mounted away from water, dust and other contaminants, with sufficient clearance around the cooling fans for unrestricted airflow.

This makes it particularly well suited to internal electrical compartments, canopies, motorhomes, caravans, boats and other protected equipment spaces where high alternator charging performance is required.

Input Voltage: 12V
Output Voltage: 12V
Maximum Charge Current: 70A
Cooling: Active fan cooling
Protection Rating: IP20
Connectivity: Bluetooth & VE.Direct
Suitable Batteries: LiFePO4, AGM, Gel and Lead-Acid
