Shervey Lockable Starlink Mini Mount

Product Overview

• The Shervey Lockable Starlink Mini Mount is designed for secure installation of the Starlink Mini antenna onto vehicle roof racks, fleet platforms and fixed structures where controlled access to the unit is required.

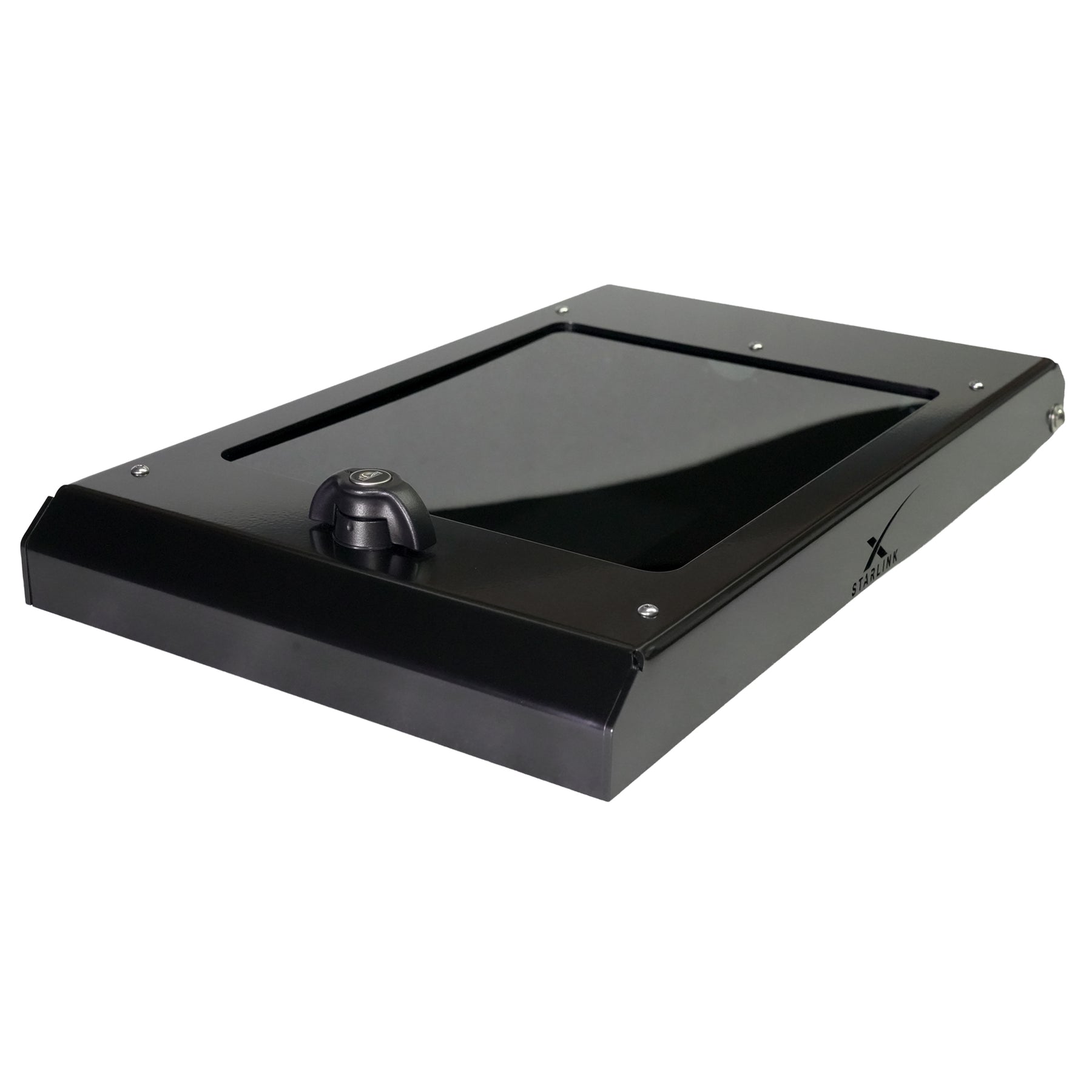

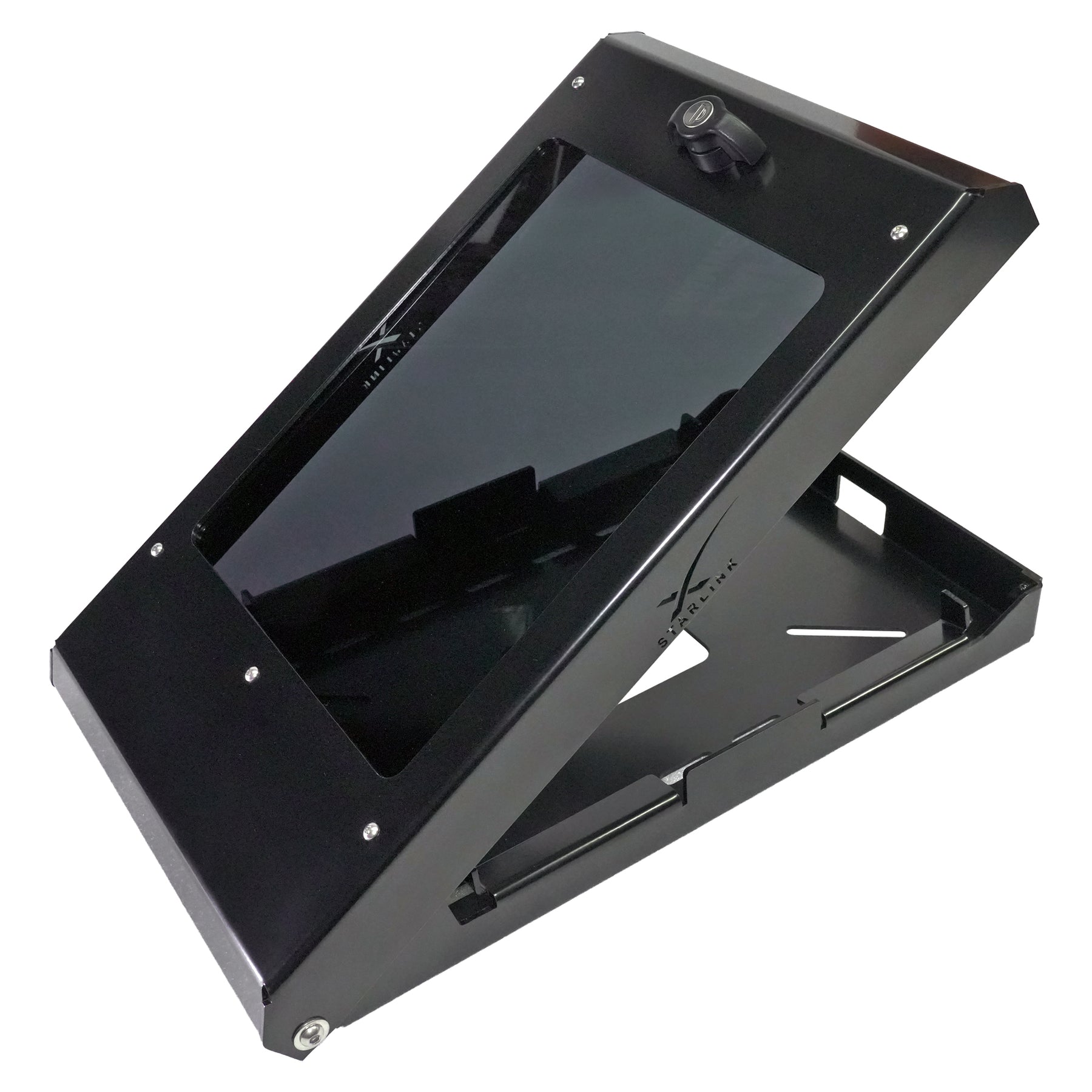

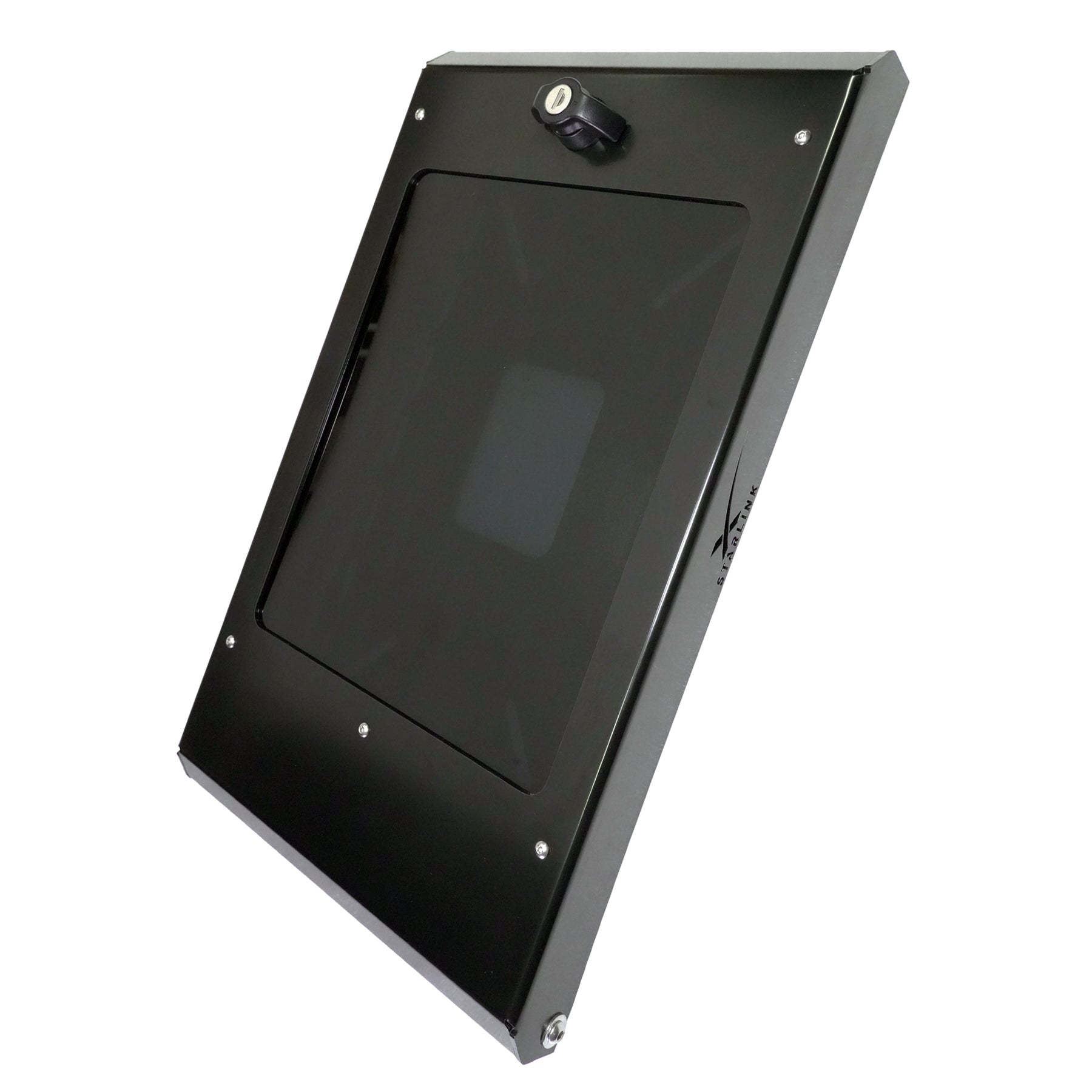

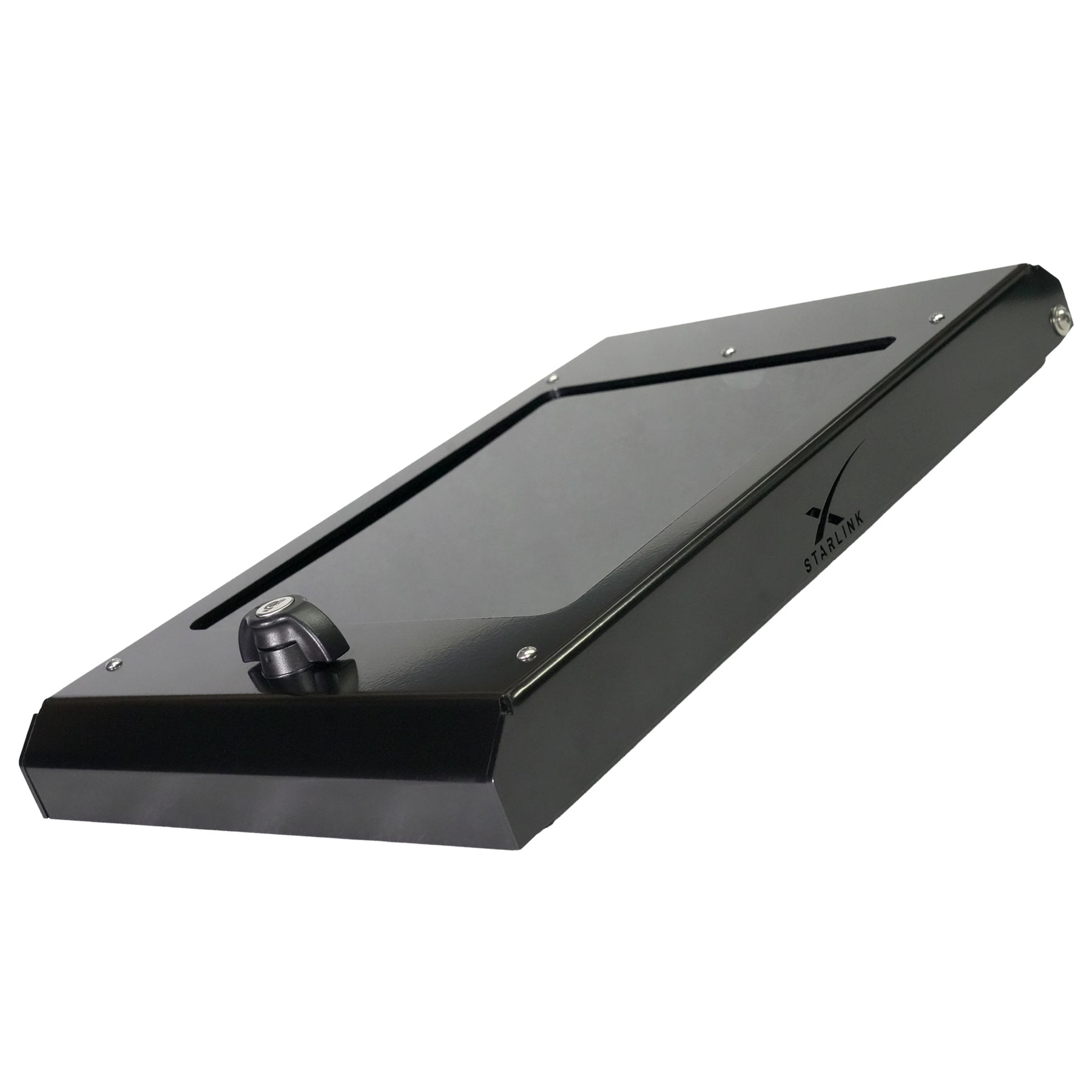

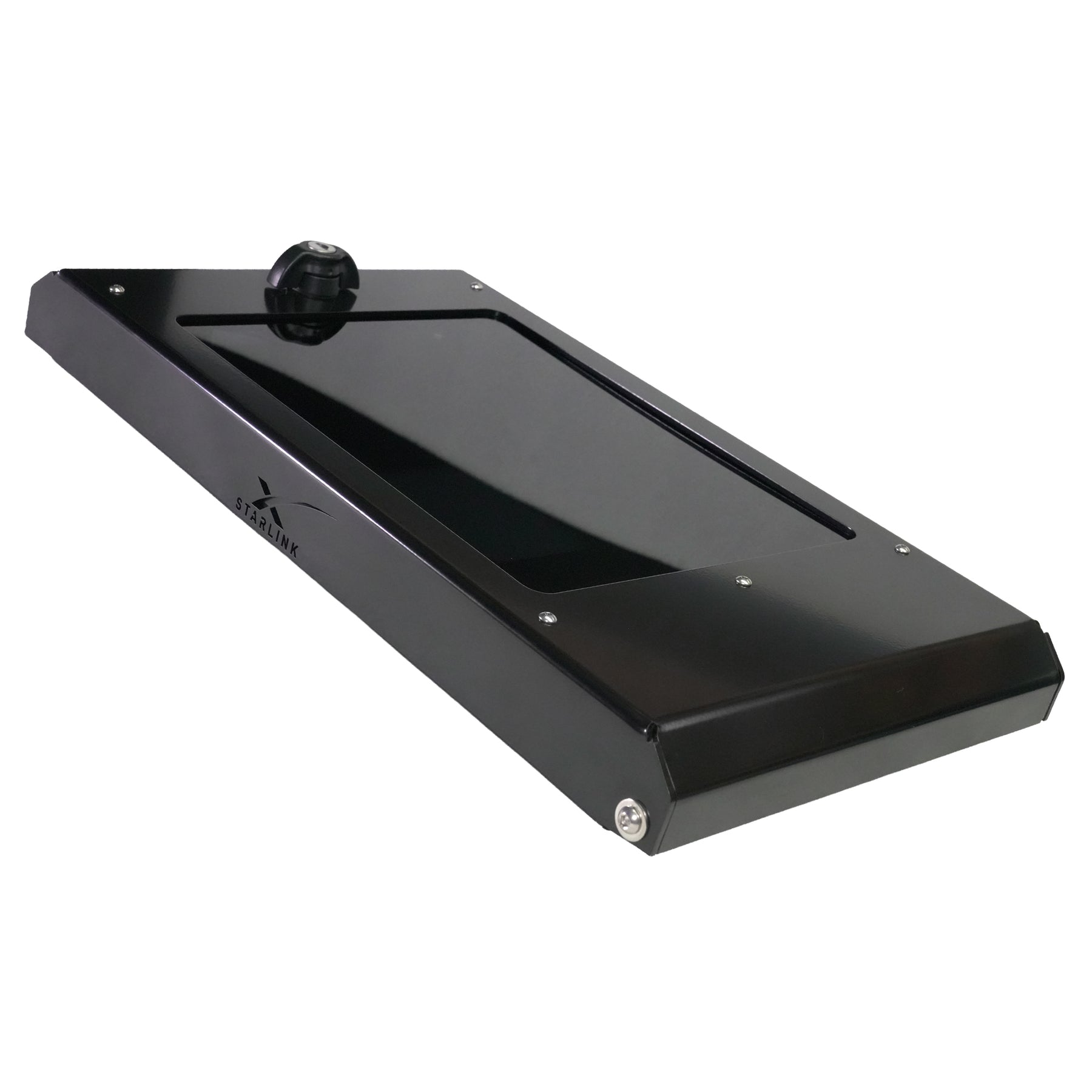

• The two-piece enclosure consists of a base and hinged lid, allowing the antenna to be installed, accessed or removed when required without fully uninstalling the mounting system. A quarter-turn compression latch secures the enclosure while maintaining a clean external profile.
• Manufactured from CNC laser cut and formed aluminium and finished with a corrosion resistant pre-treatment and powder coated finish, the mount is designed for reliable operation in harsh outdoor environments. An optional in-mount weatherproof voltage booster can be supplied pre-installed to simplify electrical integration where 12V supply systems are used.

Features

• Hinged two-piece enclosure design
• Quarter-turn compression latch for secure closure
• Designed specifically for Starlink Mini antenna
• CNC laser cut and formed aluminium construction
• Base plate includes M8 and M6 slotted mounting provisions
• Compatible with major roof rack systems
• Suitable for magnetic mounting systems using threaded magnetic bases
• Cable pass-through provision in base
• 3mm acrylic lid providing mechanical protection
• Optional in-mount weatherproof voltage booster available
• Suitable for permanent or semi-permanent mounting
• Corrosion resistant pre-treatment and powder coated finish
• Australian designed and manufactured

Specifications

• Compatibility: Starlink Mini
• External dimensions: 474.5 mm (L) x 275 mm (W) x 74.2 mm (H)
• Material: CNC formed aluminium
• Construction thickness: 3 mm aluminium body
• Cover material: 3 mm UV-stable acrylic
• Enclosure design: Two-piece base and hinged lid
• Latch type: Quarter-turn compression latch
• Mounting base: Multi-slot mounting pattern
• Mounting compatibility: M8 and M6 fastener systems
• Suitable for magnetic mounting systems using threaded magnetic bases
• Power input: Cable entry through base
• Cable routing: Base pass-through cable entry
• Voltage booster: Optional in-mount weatherproof 12V to 30V step-up converter
• Finish: Powder coated – Satin Black or White
• Installation type: Permanent or semi-permanent mounting
• Operating environment: External vehicle and fixed installations
• Country of manufacture: Australia
