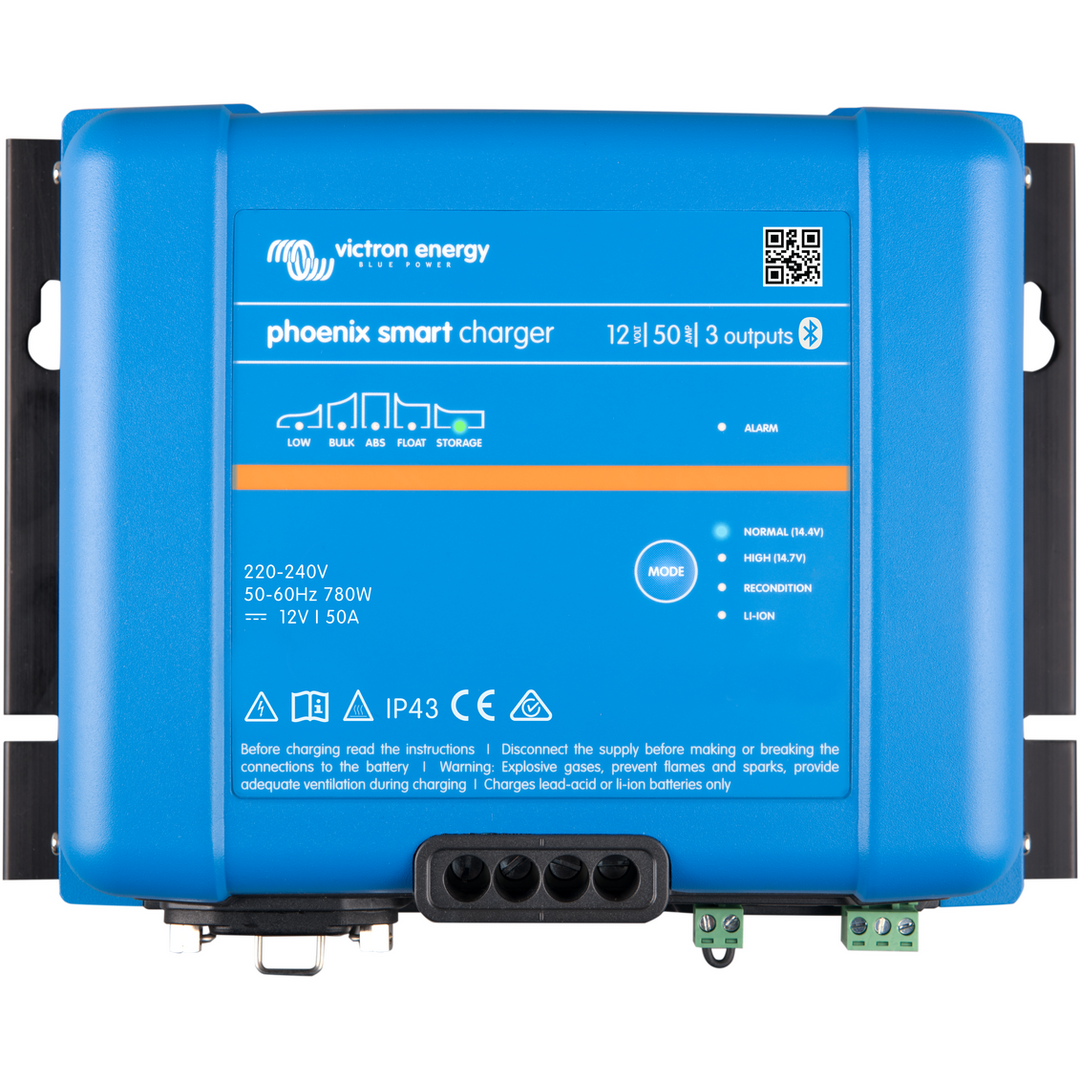

Victron Phoenix Smart IP43 Charger 12/50 (3)

The Phoenix Smart IP43 Charger 12/50 (3) 230V AU/NZ from Victron Energy is a Bluetooth-enabled charger designed for optimal battery charging and maintenance. It offers a unique adaptive battery management system that can be preset to suit different types of batteries.

Features

• Bluetooth Smart Built-In: Enables wireless setup, monitoring, control, and updates.
• Phoenix Smart (3): Three full current outputs to charge 3 battery banks. Each output can supply the full rated output current, but the total of the 3 outputs combined can never exceed the current rating of the charger.
• Adaptive 6-Stage Charge Algorithm: Bulk, absorption, recondition, float, storage, and refresh stages.
• Automatic Voltage Compensation: Compensates for voltage drop over the DC cabling by slightly increasing output voltage when the DC current increases.
• Fully Programmable: The charge algorithm can be programmed with Bluetooth or the VE.Direct interface.
• Protection: Offers protection against battery reverse polarity, output short circuit, and over temperature.

Specifications

• Model: Phoenix Smart IP43 Charger 12/50 (3) 230V AU/NZ
• Input Voltage Range: 230 VAC (range: 210 – 250 V)
• Efficiency: 94%
• Charge Voltage 'absorption': Normal: 14.4V
• Charge Voltage 'float': Normal: 13.8V
• Charge Voltage 'storage': Normal: 13.2V
• Charge Current House Battery: 50A
• Protection Category: IP43 (electronic components), IP22 (connection area)
• Dimensions (HxWxD): 180 x 249 x 100 mm

Shipping

• Weight: 3.5kg

Warranty

• This product comes with a 5-year warranty.
