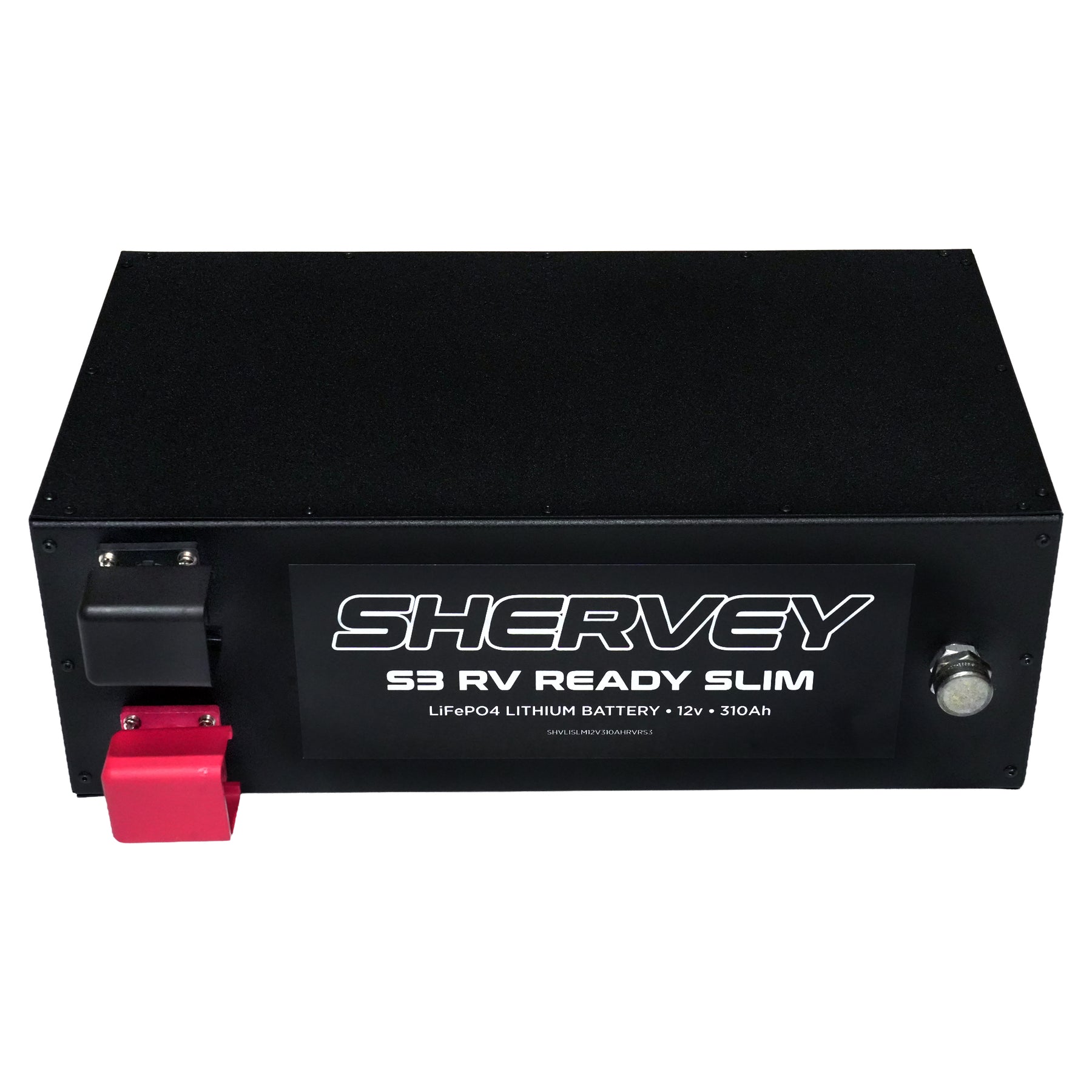

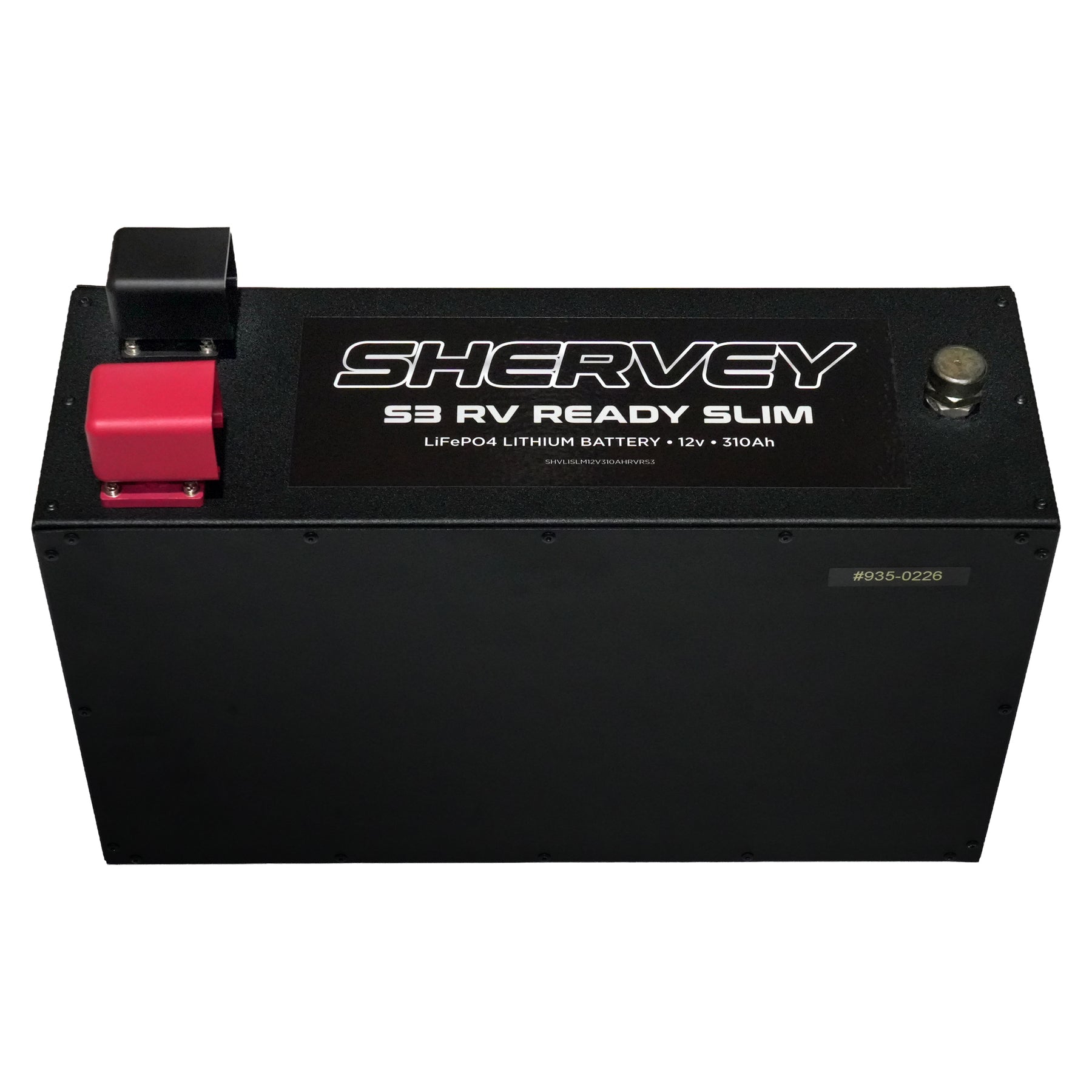

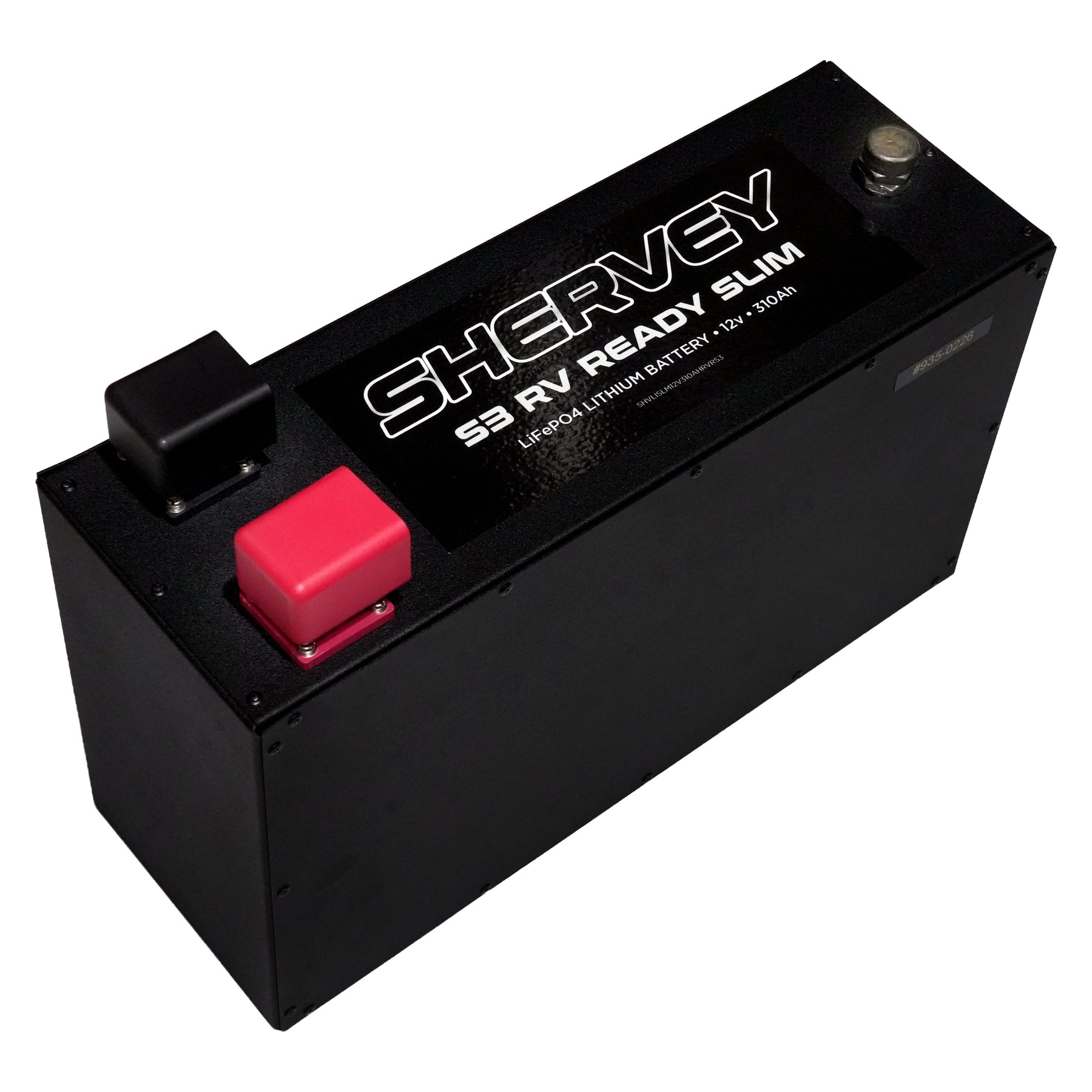

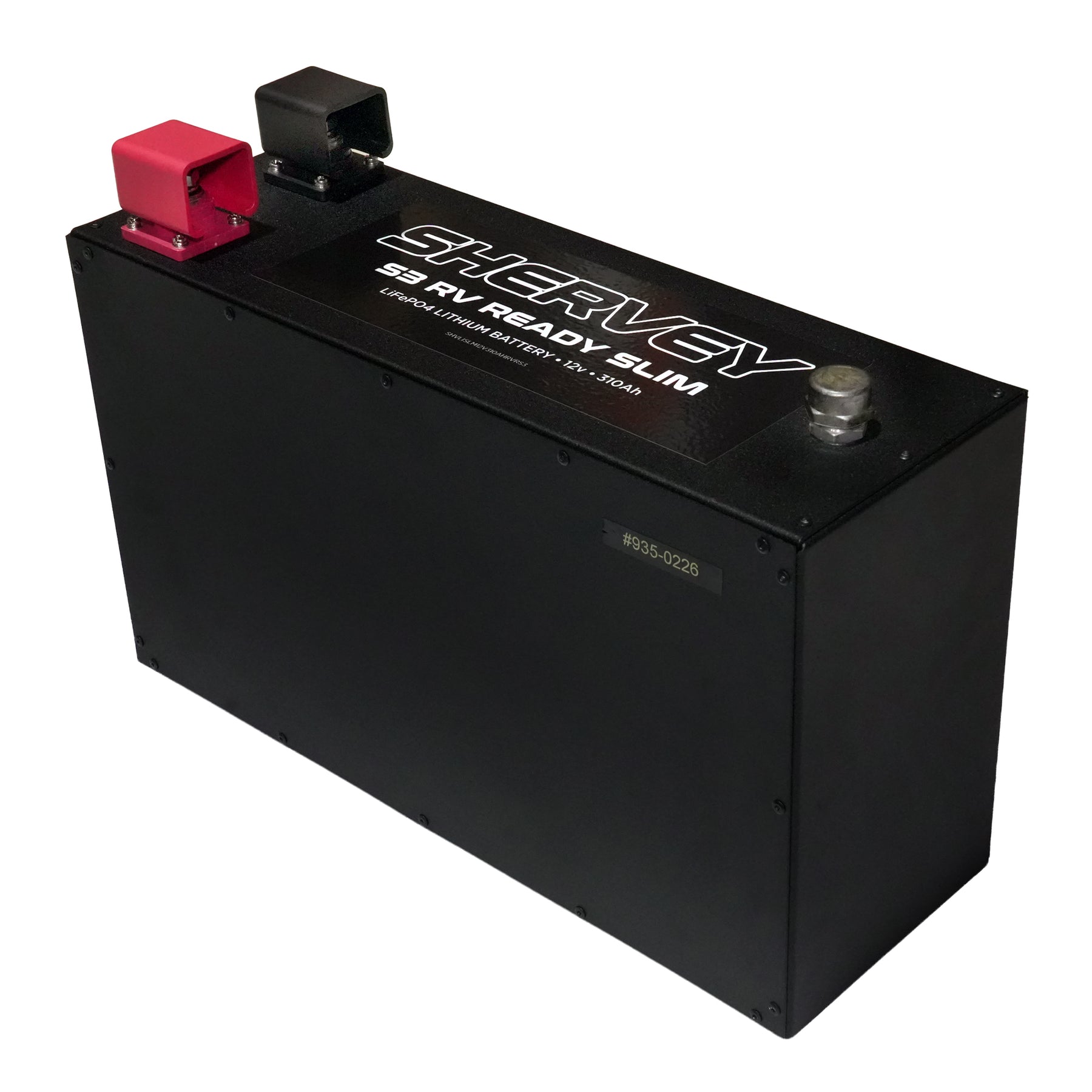

LiFePO4 12.8v Suitable for "12v" systems
- Features Active and Passive cell balancing
- BMS continuous discharge: 300A
- BMS continuous charge: 300A
- BMS discharge over current protection: 320A for 10 seconds, reset 35 seconds.
- BMS charge over current protection: 320A for 10 seconds, reset 35 seconds.
- Low voltage discharge shut down: 10v restart 10.5v
- High Voltage charge disconnect: 15v restart 14.8v
- Low temp charge disconnect: 1c reset 2c
- Low temp discharge disconnect -20c reset -15c
- High temp charge disconnect: 55c reset 50c
- High temp discharge disconnect: 60c reset 55c
Charging
- Bulk Charge: 14.2V – 14.6V (ideal: 14.4V)
- Absorption: 14.2V – 14.6V (ideal: 14.4V)
- Float: 13.4V – 13.6V (ideal: 13.5V)

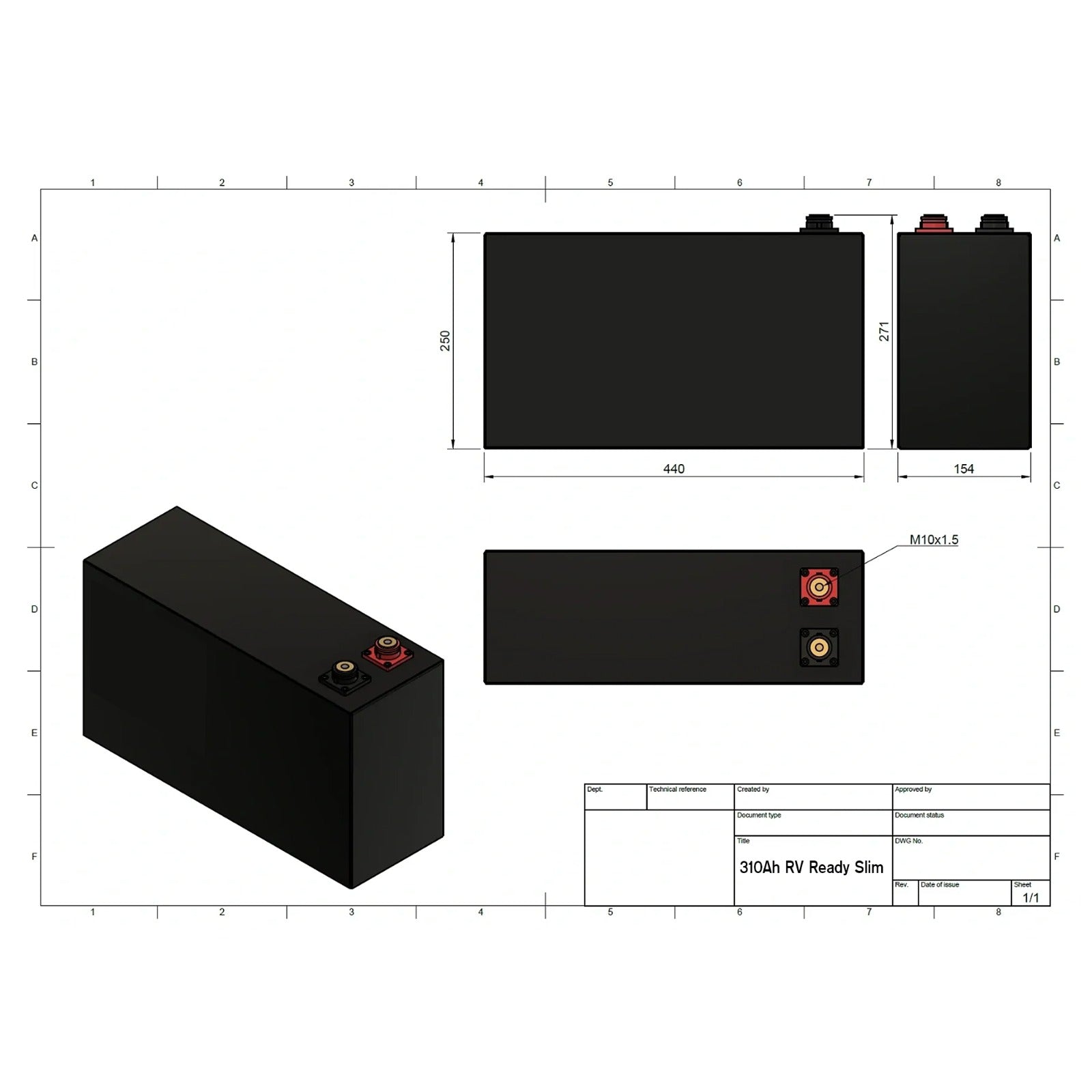

Terminal size: M10
Case made from zinc plated and powder coated steel
The Automotive grade cells used are rated 8000 cycles @ 70% depth of discharge
Weight 28.5kgs
