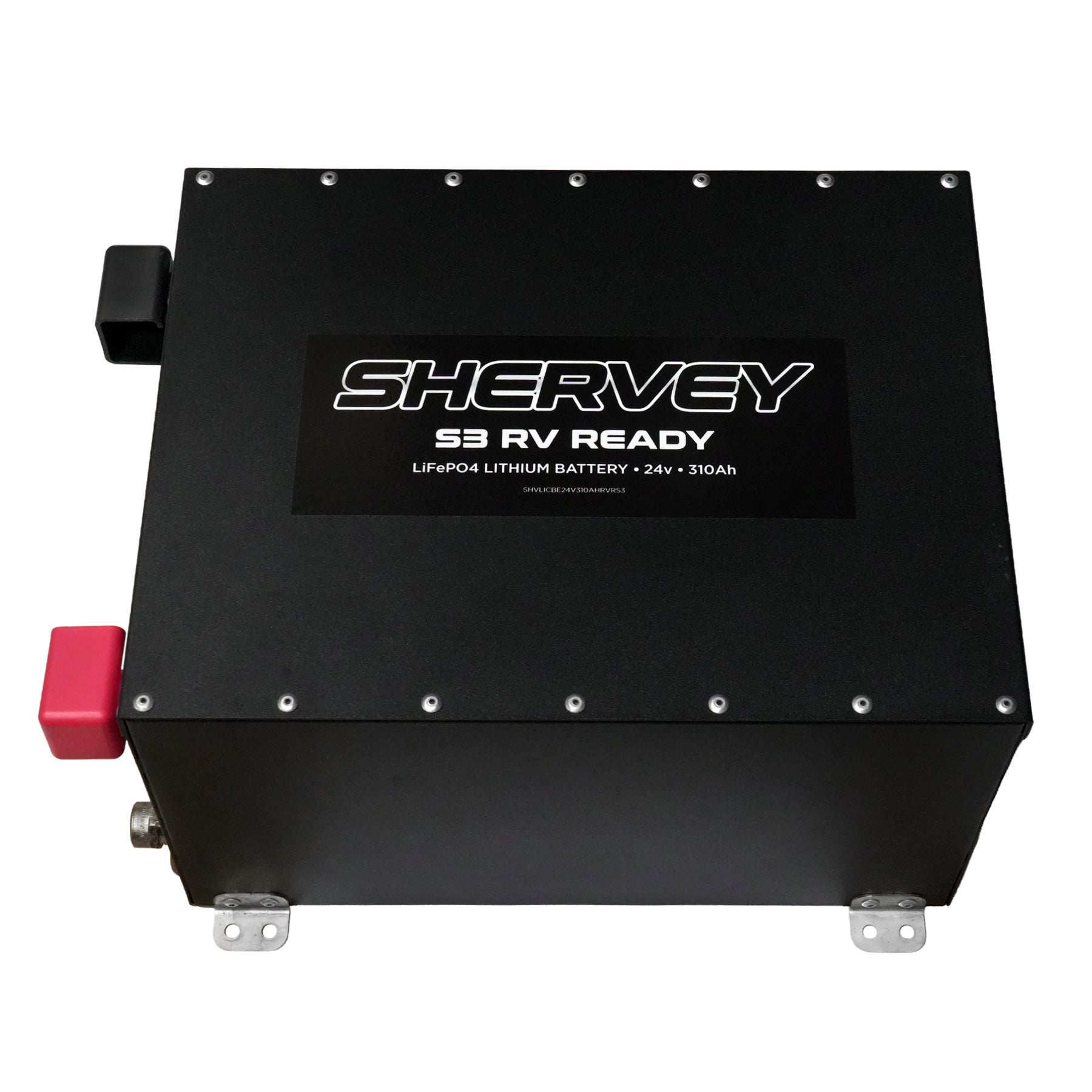

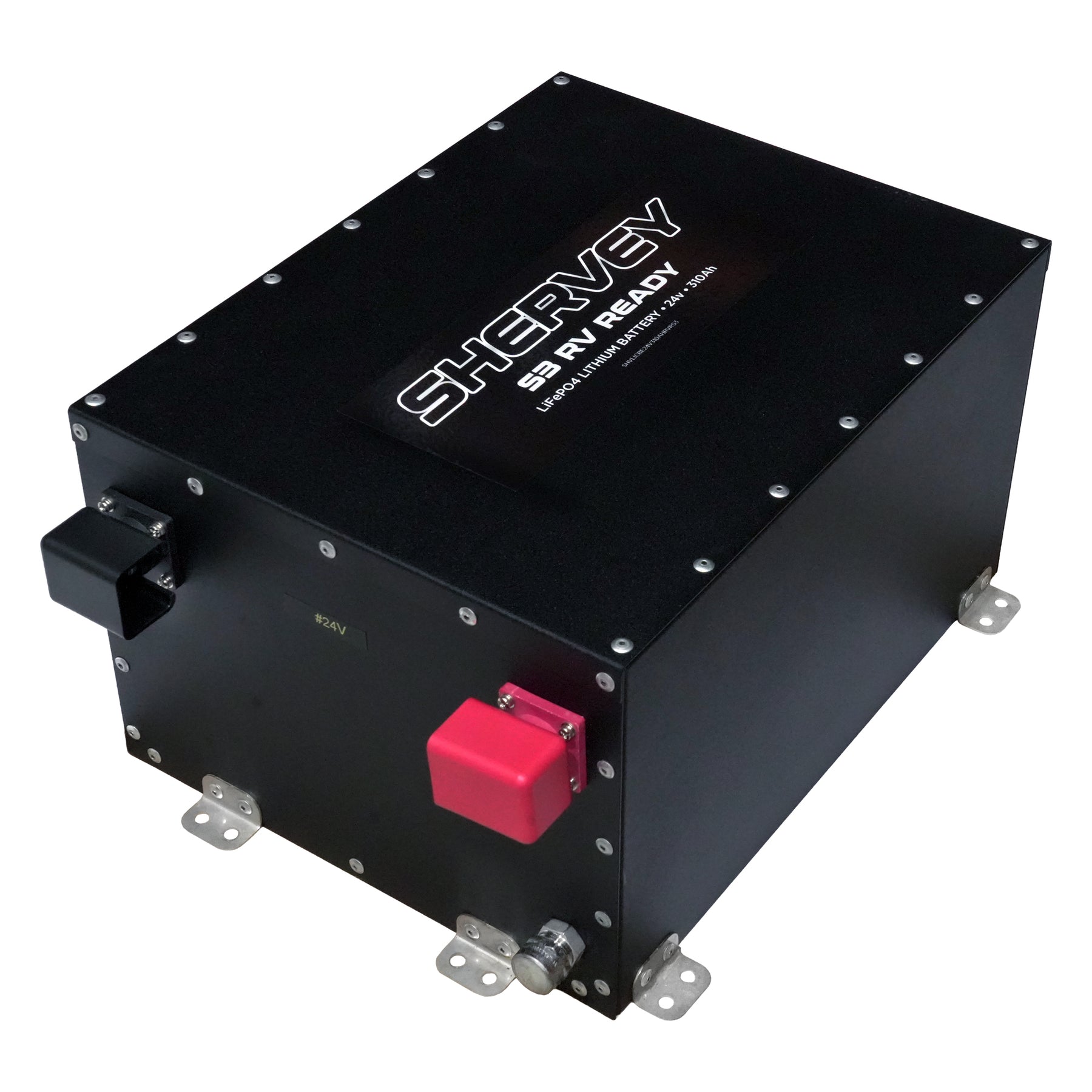

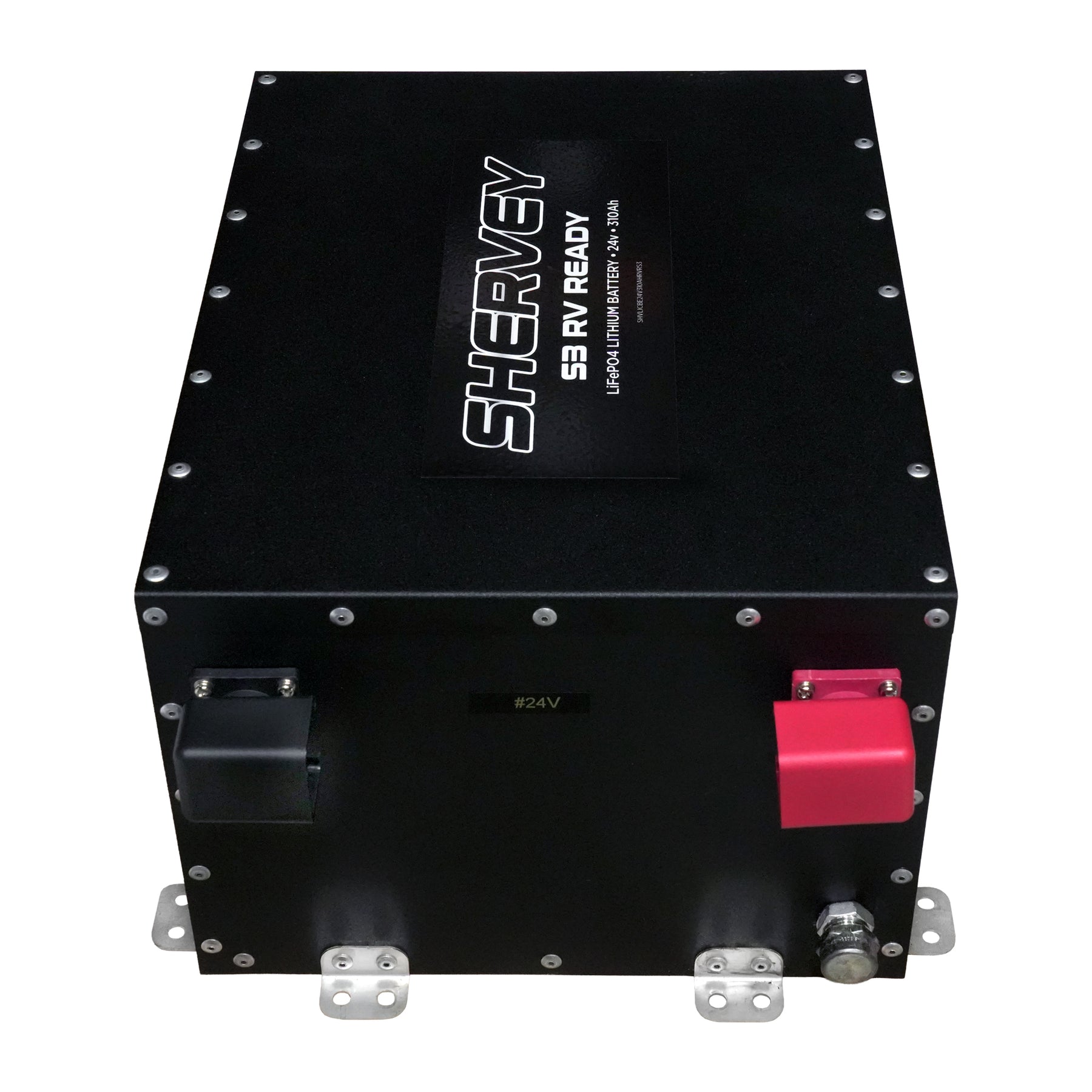

Shervey S3 RVReady LiFePO4 Battery 24V 310AH

LiFePO4 25.6v Suitable for "24v" systems

• 250A BMS
• BMS continuous discharge: 250A
• BMS continuous charge: 250A
• BMS over current protection: 270A for 10 seconds, reset 35 seconds.
• Low voltage discharge shut down: 20v restart 21v
• High Voltage charge disconnect: 30v restart 29.6v
• Low temp charge disconnect: 1c reset 2c
• Low temp discharge disconnect -20c reset -15c
• High temp charge disconnect: 55c reset 50c
• High temp discharge disconnect: 60c reset 55c


Charging

•  Bulk Charge: 28.4V – 29.2V (ideal: 28.8V)
• Absorption: 28.4V – 29.2V (ideal: 28.8V)
• Float: 26.8V – 27.2V (ideal: 27.0V)

The Automotive grade cells used are rated 8000 cycles @ 70% depth of discharge

Terminal size: M10

Vent outlet thread: 1/2 inch male BSP thread

Sealed back riveted case made from zinc plated and powder coated steel with high temp sealant

Weight 53.9kgs
